Switch PoE+ Administrable CentreCOM GS970M, Capa 3 de 16 Puertos 10/100/1000 Mbps + 2 SFP Gigabit, 247 W

$ 27,157.36

Descripción

Puertos:

16 puertos 10/100/1000 Mbps.

2 puertos SFP Gigabit.

Forwarding rate: 26.8 Millones de paquetes por segundo (Mpps).

Switching fabric: 36 Gbps.



PoE:

IEEE 802.3af Power Over Ethernet (PoE) hasta 15.4 W por puerto.

IEEE 802.3at Power Over Ethernet plus (PoE+) hasta 30 W por puerto.

Potencia total: 247 W.



Sistema Operativo:

AlliedWare Plus™.

Administración:

Interfaz de línea de comandos (CLI).

Interfaz gráfica de usuario (GUI).

Telnet.

SSH.

Monitoreo SNMP v1, v2c & v3.

Características:

Access Control Lists (ACLs) basadas en Capa 2, 3 y 4.

Características de IPv6.

Eco-friendly con el medio ambiente.

Soporte de autenticación IEEE 802.1x / MAC / Web.

Soporte de Multicast - IGMP snooping (IGMPv1, v2 and v3).

Storm protection.

Bridge Protocol Data Unit (BPDU) protection.

Tri-authentication.

QoS (Quality of Service):

  • Ocho colas de prioridad.
  • Limite de ancho de banda por puerto.
  • Clasificación de tráfico con baja latencia.



Características de redundancia:

Ethernet Protection Switched Ring (EPSRing).

Loop protection.

Link Aggregation.

Spanning Tree Protocol (STP).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).



Funciones de capa 3 soportadas:

Ruteo estático.

RIP.



Características físicas y eléctricas:

Alimentación: 100-240 VAC, 50-60 Hz, 2.4 A.

Dimensiones: 1 U Rack, 44 x 231 x 341 mm.

Peso: 3.0 kg.

Temperatura de operación: 0 a 50° C.

Garantía:

1 Año.

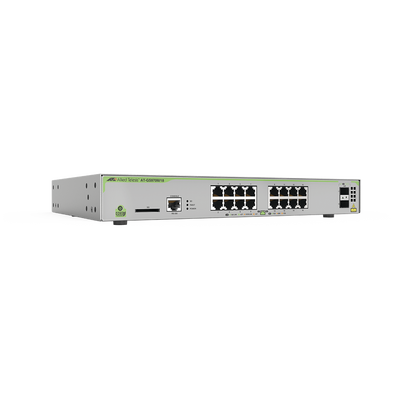

Panel Frontal del switch GS970M/18PS.
