FEATURES

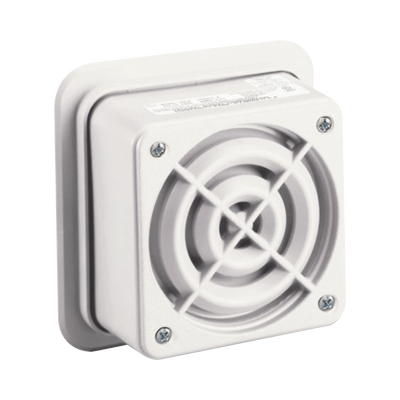

Federal Signal’s AudioMaster® Model AM50 is a compact, two watt, transformer coupled speaker for use in emergency notification or paging applications. The unique design of this four-inch square speaker centers around the short, folded, re-entrant horn that is interposed between the diaphragm and the surrounding space.
This speaker is supplied with wiring terminals and strain relief for inbound and outbound speaker wiring.
Model AM50 is designed primarily for wall mounting and includes a trim ring for adapting to any standard four-inch square or weatherproof back box. This speaker is UL Listed for “Fire Protective Signaling Use” and California State Fire Marshall approved.
SPECIFICATIONS
Mount | Wall |
Optional Weatherproof Back Box (Model WB) | |
Optional Flush Mount Box (Model FBL) | |
Power Handling | 2 Watt |
Power Taps | 2, 1, 1/2, 1/4 |
Frequency Response | 140Hz - 10KHz |
Decibel Output | 87 dBa @ 10 Feet (97 dBa @ 1 Meter) |
Operating Temperature Minimum | -40 °F |
Operating Temperature Maximum | 151 °F |
Enclosure Rating | Type 3R when used with Weatherproof Backbox |
Net Weight | 1.40 lb |
Shipping Weight | 1.75 lb |
Height | 5.500 in |
Width | 5.500 in |
Depth | 2.520 in |
